Understanding ABI Encoding for Dynamic Bytes in Solidity

Understanding ABI Encoding for Dynamic Bytes in Solidity

When dealing with dynamic types like bytes in Solidity, the EVM needs a specific way to know where the data starts and how long it is. Let's break down exactly how this works under the hood using a simple example.

The Scope & Setup

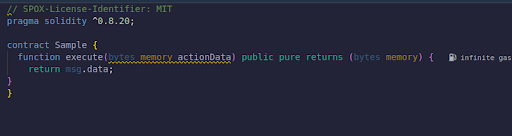

We will use a simple contract that takes dynamic bytes data and returns it directly:

For this breakdown, we will set actionData to the following 8-byte value: 0x1122334455667788

The Raw vs. Pretty Calldata

When we execute this function, the transaction sends an encoded calldata payload that looks like a massive, unreadable string of hex characters:

 0x09c5eabe000000000000000000000000000000000000000000000000000000000000002000000000000000000000000000000000000000000000000000000000000000081122334455667788000000000000000000000000000000000000000000000000

Parsing the Noise with Foundry

Because raw calldata is incredibly difficult to read by eye, we use a helper tool from Foundry:

cast pretty-calldata 0x09c5eabe0000000000000...

This command splits the chaotic string into clean, readable 32-byte chunks, making it easy to track the layout of the ABI encoding

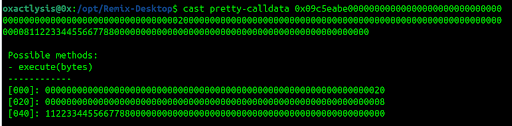

Here is what the terminal outputs:

Terminal view

Note: The first 4 bytes 0x09c5eabe represent the function selector for execute(bytes) and it needs to be manually added to your calldata when using pretty-calldata on it.

ABI Encoding of Dynamic Parameters

The Solidity ABI encoder automatically structures dynamic parameters into two main areas: the reference (Offset) and the data section (Length + Actual Data).

1. The Offset (Chunk [000])

1. How counting works: The EVM starts counting from 0 relative to the beginning of the arguments block (immediately after the 4-byte selector).
2. The Reason: The value here is 0x20 (which is 32 in decimal). This literally instructs the EVM: "Move 32 bytes forward from the start of the arguments block. At that exact position, you will find the dynamic data section."
3. Key Realization: The offset does not point directly to the raw data. Instead, it points to a region that begins with the data's length, which is then immediately followed by the raw bytes.

2. The Length (Chunk [020])

1. The Reason: Because we jumped 32 bytes (0x20) forward as instructed by the offset, we arrive at chunk [020]. This chunk specifies the size of the dynamic data.
2. The Value: 0x08, meaning our input data is exactly 8 bytes long (which matches 0x1122334455667788).

3. The Actual Data (Chunk [040])

1. The Reason: The EVM loads data immediately after reading the length size.
2. Our actual 8-byte payload (1122334455667788) sits perfectly at the front of this 32-byte slot, with the remaining slots padded out with trailing zeros to satisfy the EVM's word alignment requirements.
